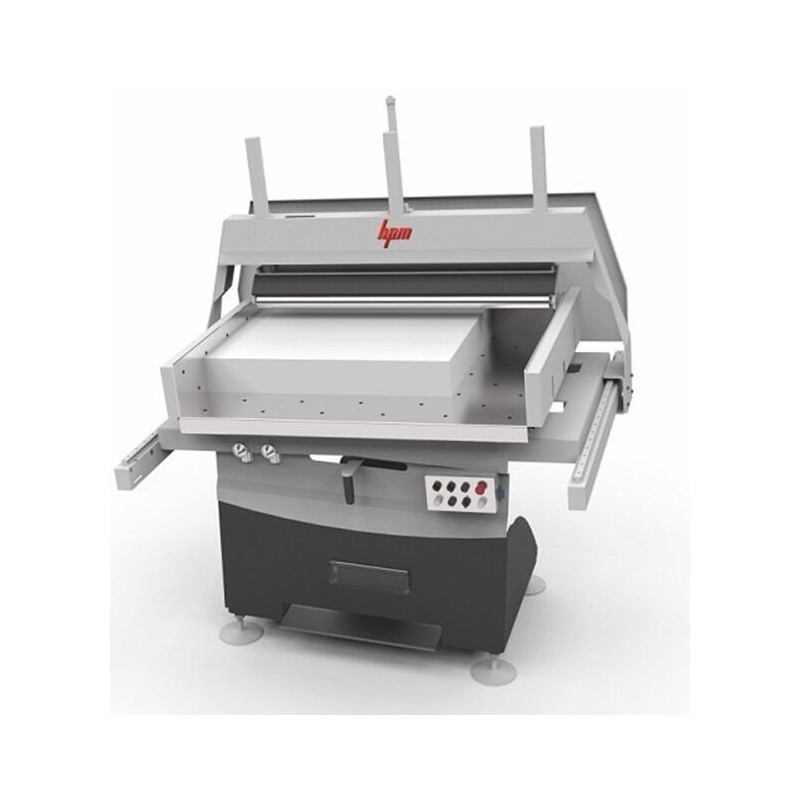

PRINTECH CZ113 2017

Category : Post-Press / Jogging tables
Machine no.60541
1. Supporting equipment for cutting system,can exclusive use also-- 2. Jogging rate can be adjusted-- 3. Automatic air-removing function,single and twice two air-removing modes-- 4. Side baffle plate can be put down,convinent for paper stack transportation-- 5. Worktable and side baffle plate are both with air cushion-- 6. Jogger table can be inclined two directions,every direction is with four different inclining degrees.- - Max jogging width:1130mm- Max jogging length:863mm- Max jogging height:166mm- Min air-removing height:30mm- Jogging table height(adjustable):880-1050mm- Max power:1.4kw- Voltage:380V 50HZ 3-phase- Air Pump (Max. Flow) 40 m3/h- (Max.Pressure) 10.79 Kpa- - Lifting reducing motor:380V/50HZ,550W/1420R/MIN- - Air-removing reducing motor:380V/50HZ, 550W/ 1420r/min- - Jogging motor:380V/50HZ,150W/2900r/min- Air pump motor:380V/50HZ,250W/2800r/min- Max jogging capacity:160kg- Net Weight:620kg- Gross Weight:780kg- Outline dimension: 1510*1210mm- Packing Size(L*W*H):1720*1320*1930mm- -
Year : 2017
Availability : IMMEDIATE
