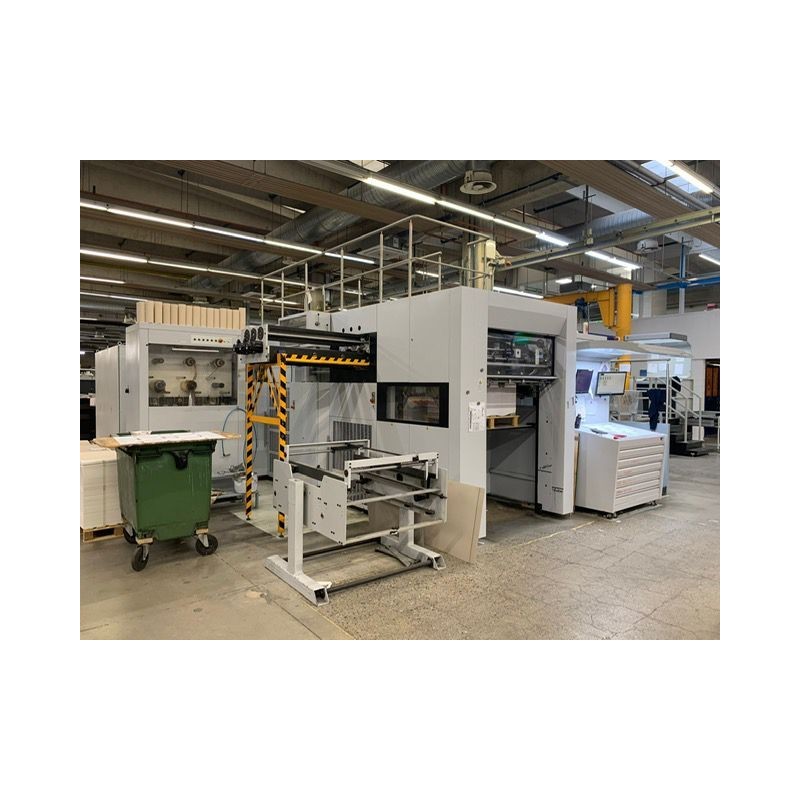

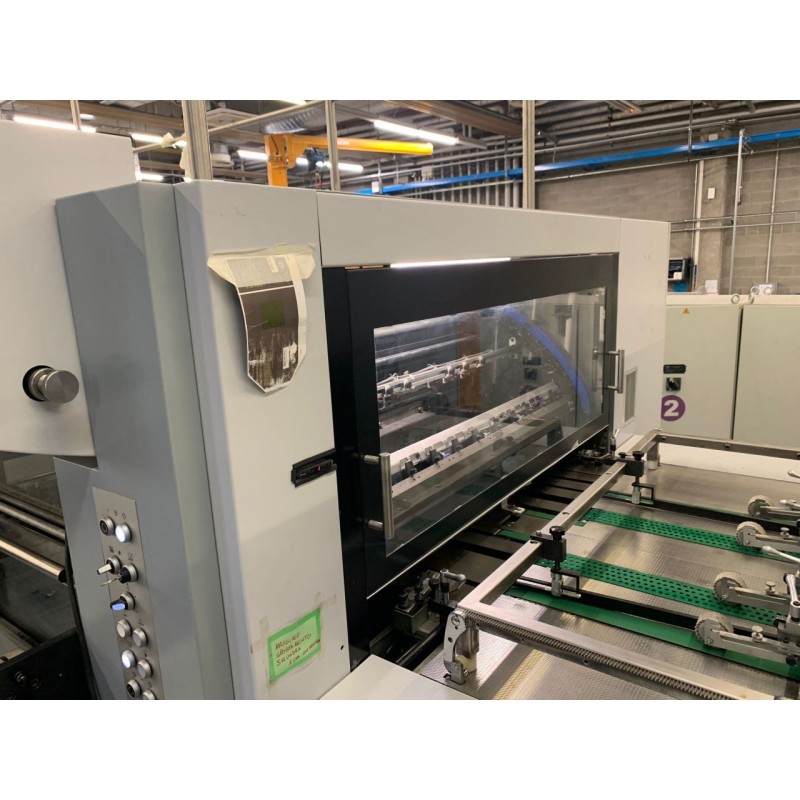

MK DUOPRESS 106 FCS 2017

Category : Post-Press / Embossing/Hot Foil
Machine no.75179

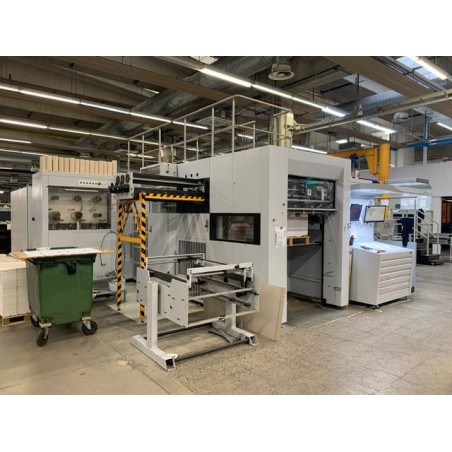

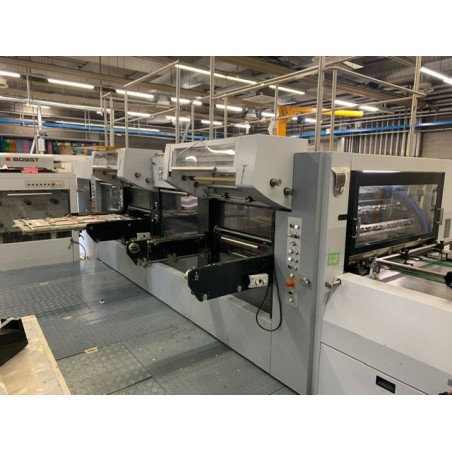

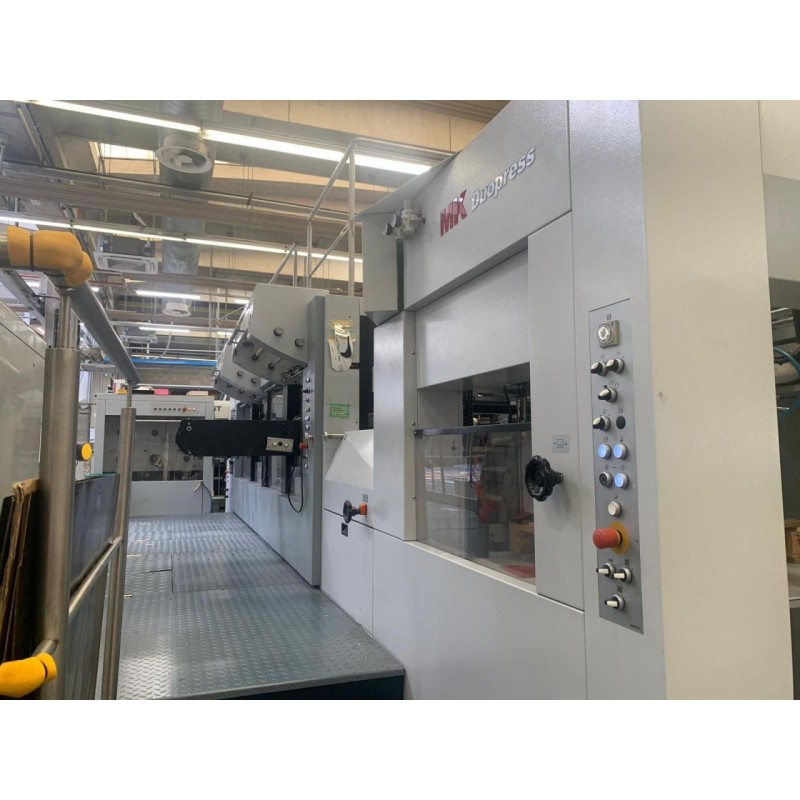

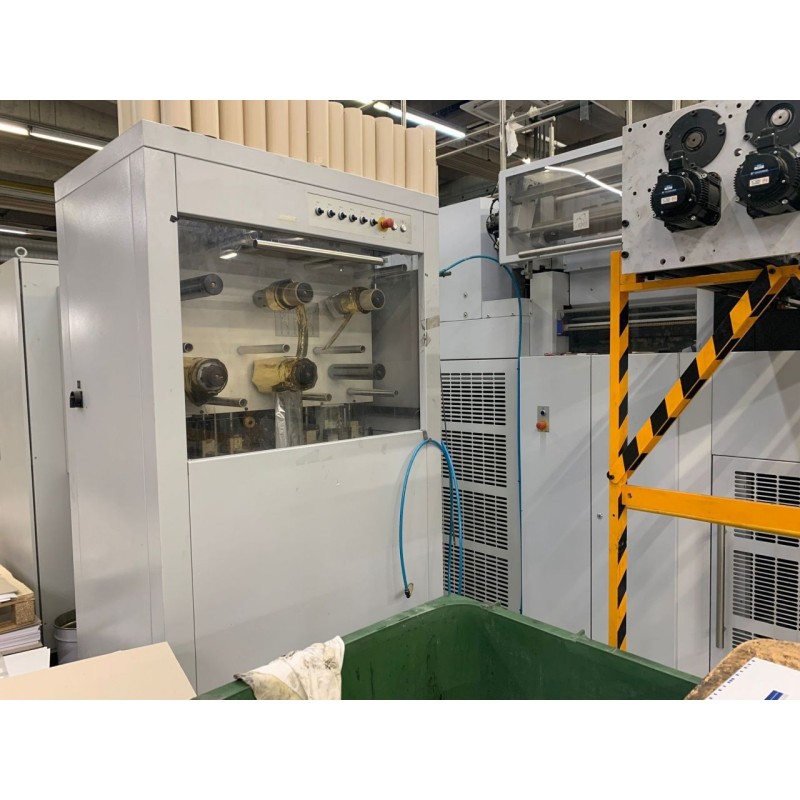

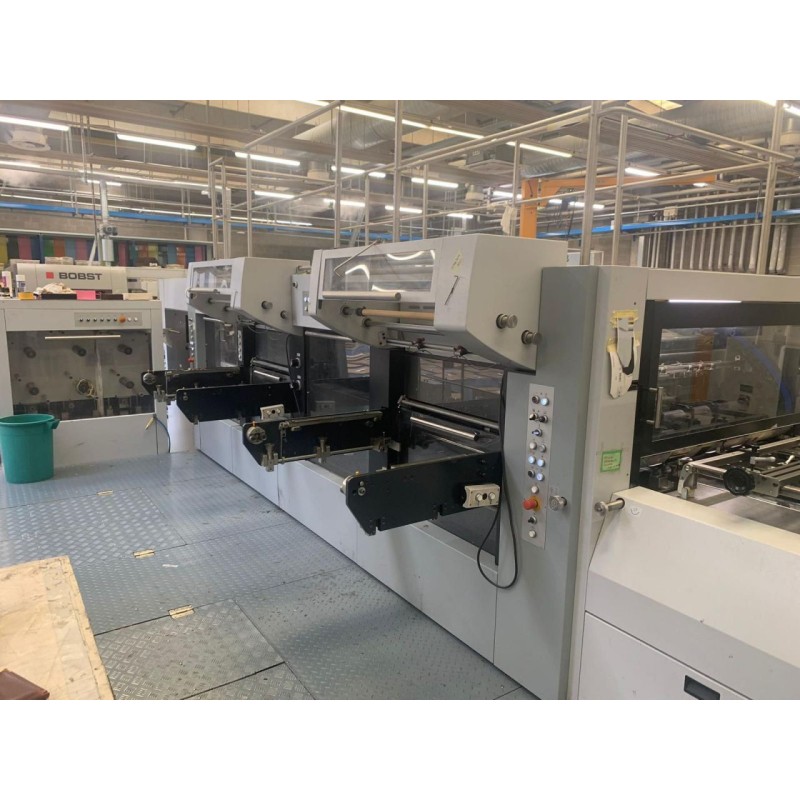

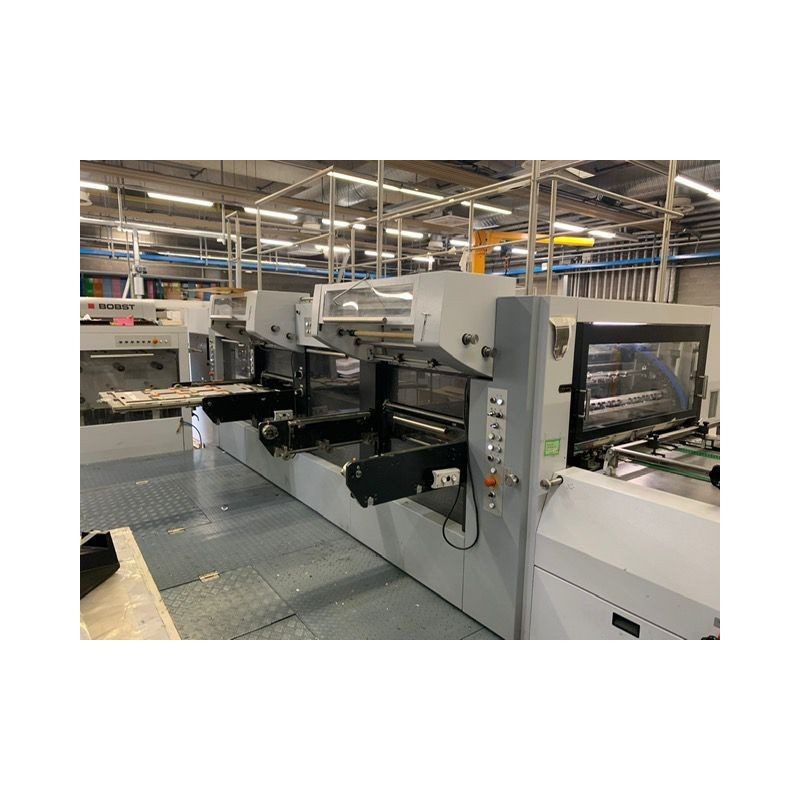

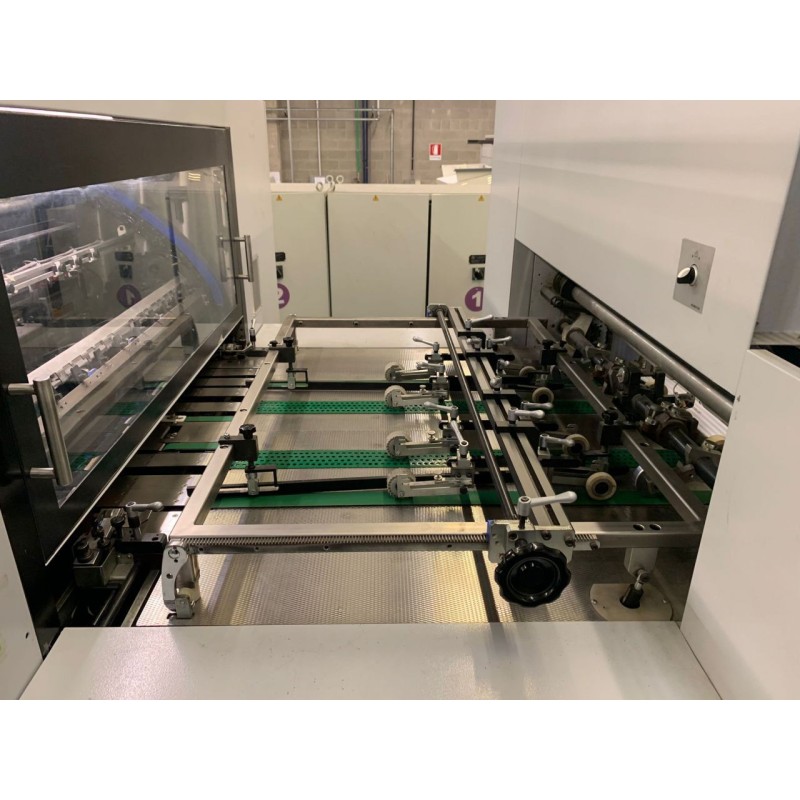

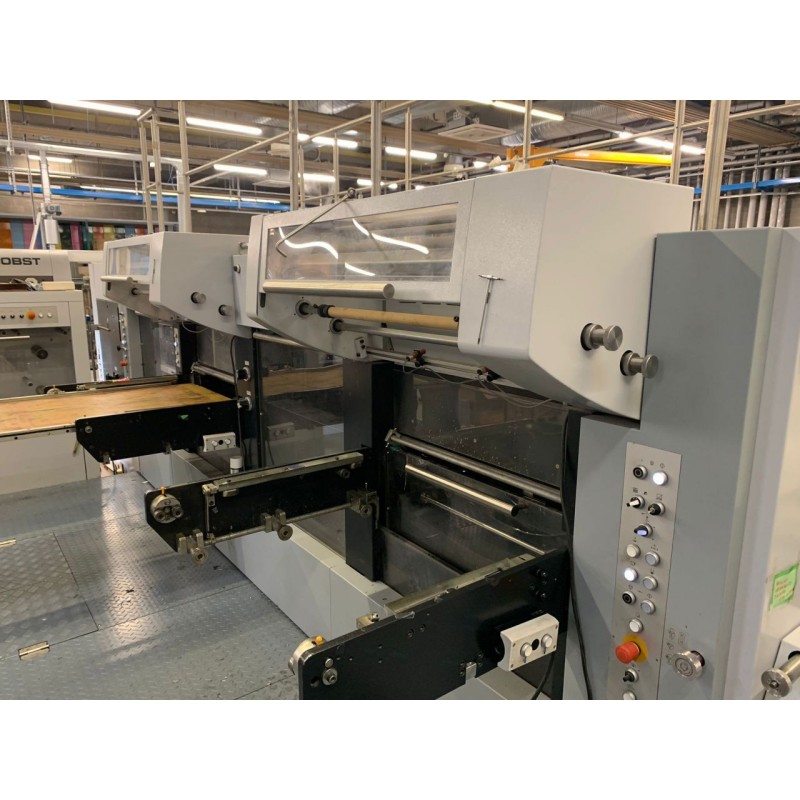

MK Duopress 106 FCS- Hot foil stamping, die-cutting, stripping and blanking in one single production process.- Suitable for luxury packaging of cosmetics, tobacco, confectionery or liquor- The Duopress is a unique die-cutting machine with two cutting stations with the first station used for hot foil stamping.- Equipped with:- Hot Foil Stamping- ? Foil guiding longitudinal and transversal- ? Brush system for foil dispose- ? Foil advancing program for optimal foil saving- ? 20 heating zones- ? Precise hologram stamping- Stripping- ? Quick lock systems for all tools (top, middle, bottom)- ? Fine adjustment of tools with position indicators- ? Electronic sheet monitoring- ? Pre-make-ready table (optional)- Blanking- ? Quick lock systems for all tools- ? Fine adjustment of tools with position indicators- ? Non-stop operation- ? Automatic pallet change system- Specification:- Paper (min.) 90g- Carbon Board (max.) 2,000g- Corrugated Board (max.) 2 mm- Sheet size (max.) 760 x 1,060mm- Sheet size (min.) 350 x 400mm- Cutting pressure (max.) 2.5MN / 250t- Machine speed (max.) 5,000 s/h- Hot foil stamping speed (max.) 5,000 s/h- Temperature 40? - 180?- Number of heating zones 20- Foil advancing shafts (per station) 3 longitudinal, 2 transversal- Foil diameter (longitudinal) 250 mm- Foil diameter (transversal) 200 mm- Foil width 20 ? 1,060 mm
Year : 2017
Availability : IMMEDIATE
